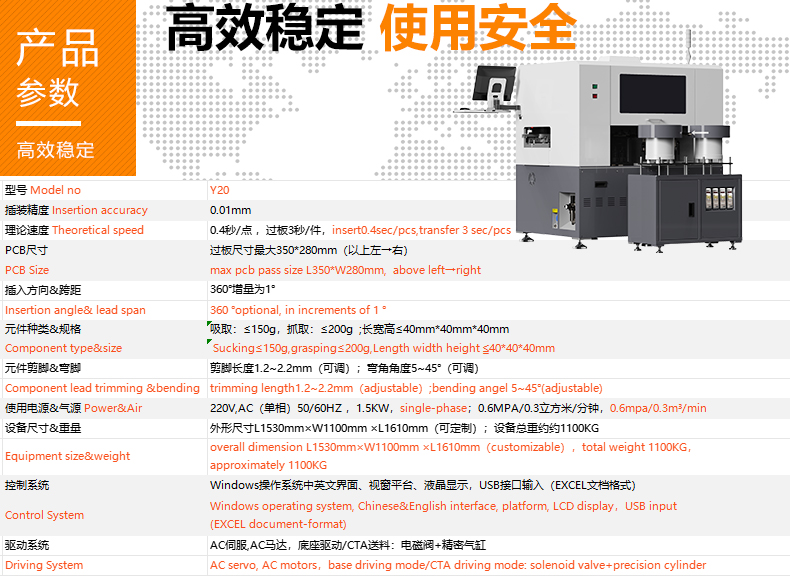

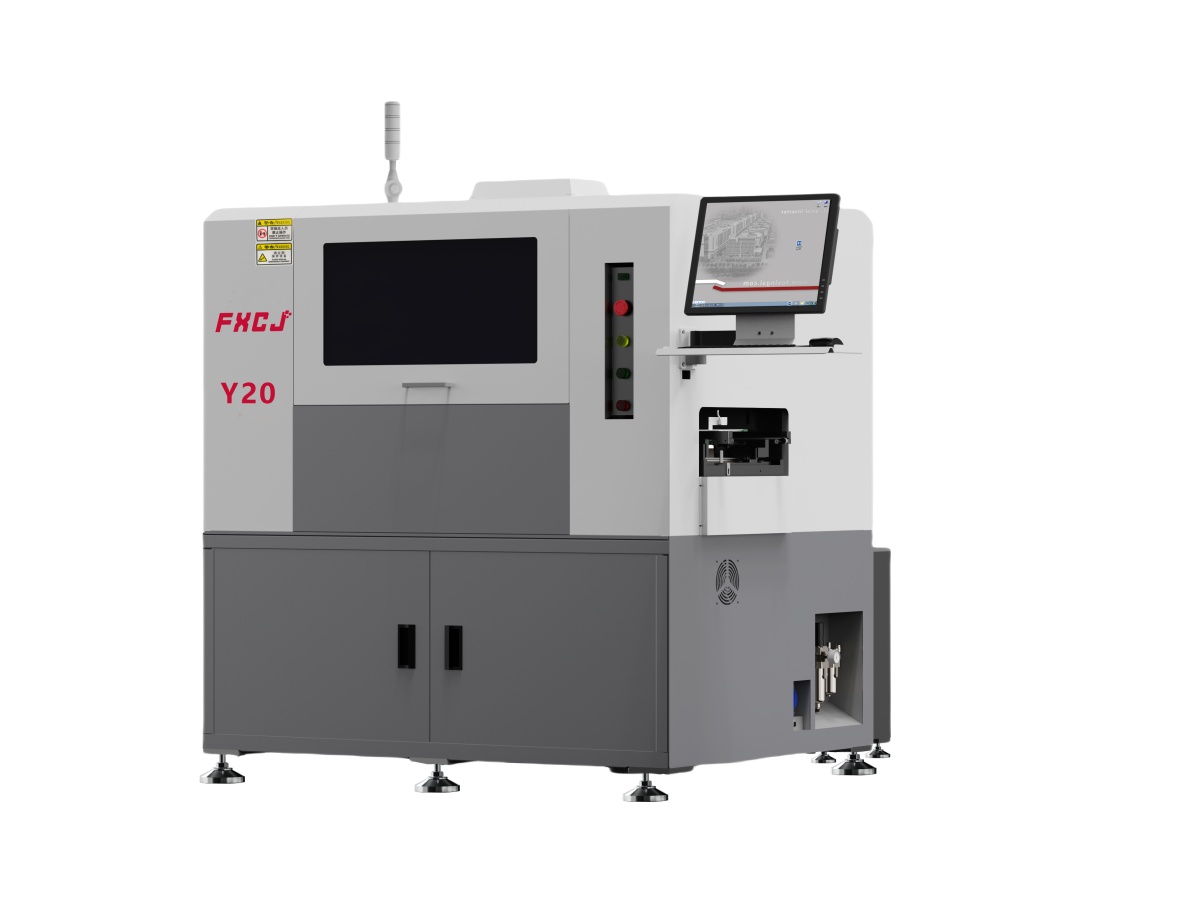

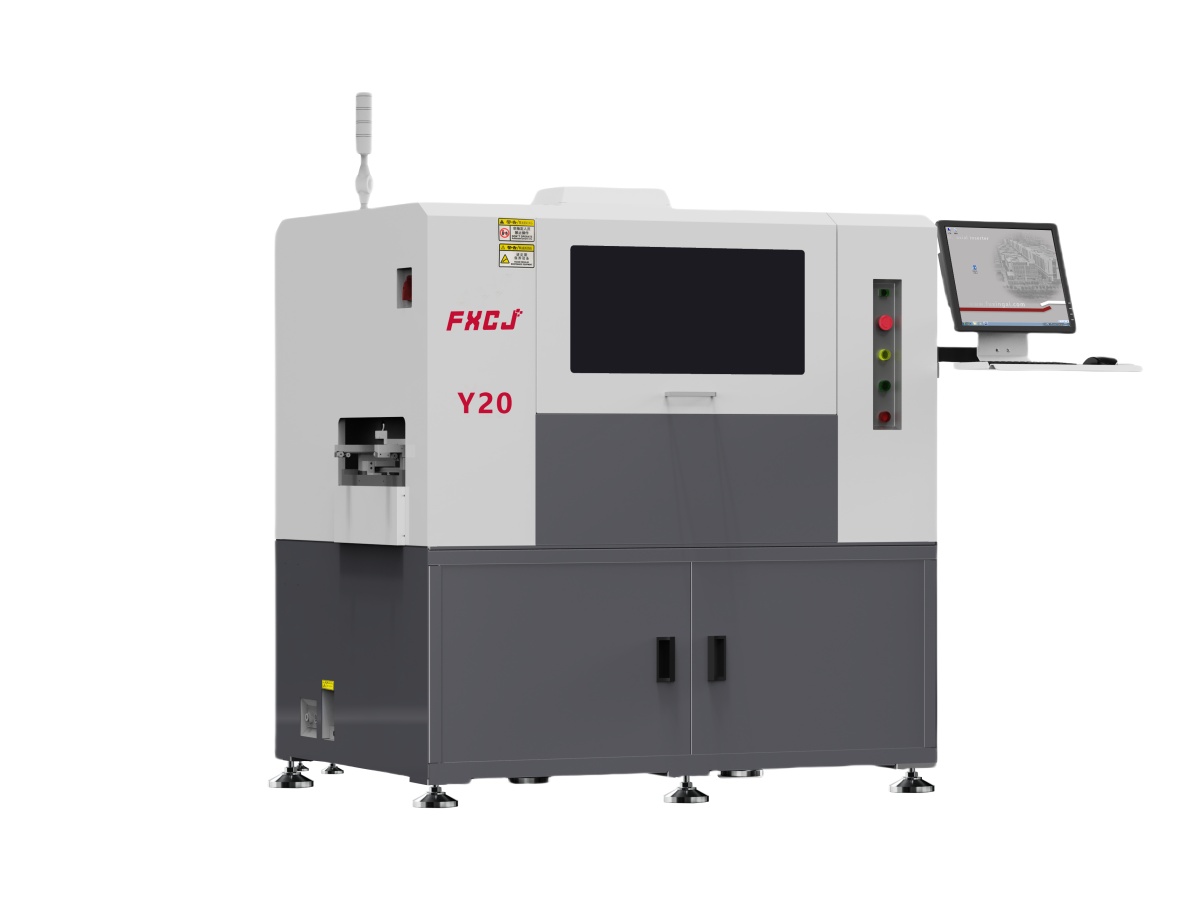

型號?Model no | Y20??插裝精度0.01mm?Insertion accuracy | |
理論速度?Theoretical speed | 0.4秒/點 ,過板3秒/件,insert0.4sec/pcs,transfer 3 sec/pcs | |
PCB尺寸 | 過板尺寸最大350*280mm(以上左→右) | |
PCB Size | max pcb pass size L350*W280mm,? above left→right | |
插入方向&跨距 |
360°增量為1° 360 °optional, in increments of 1 °; |
|
Insertion angle& lead span | 360 °optional, in increments of 1 ° | |

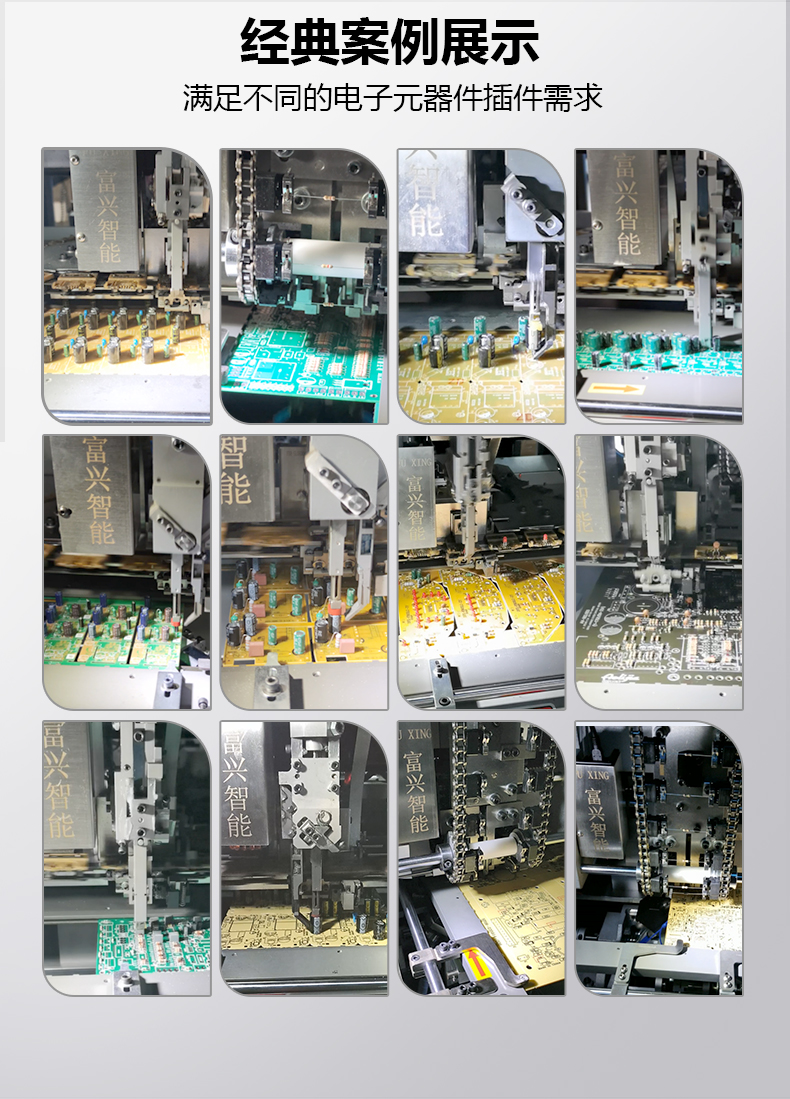

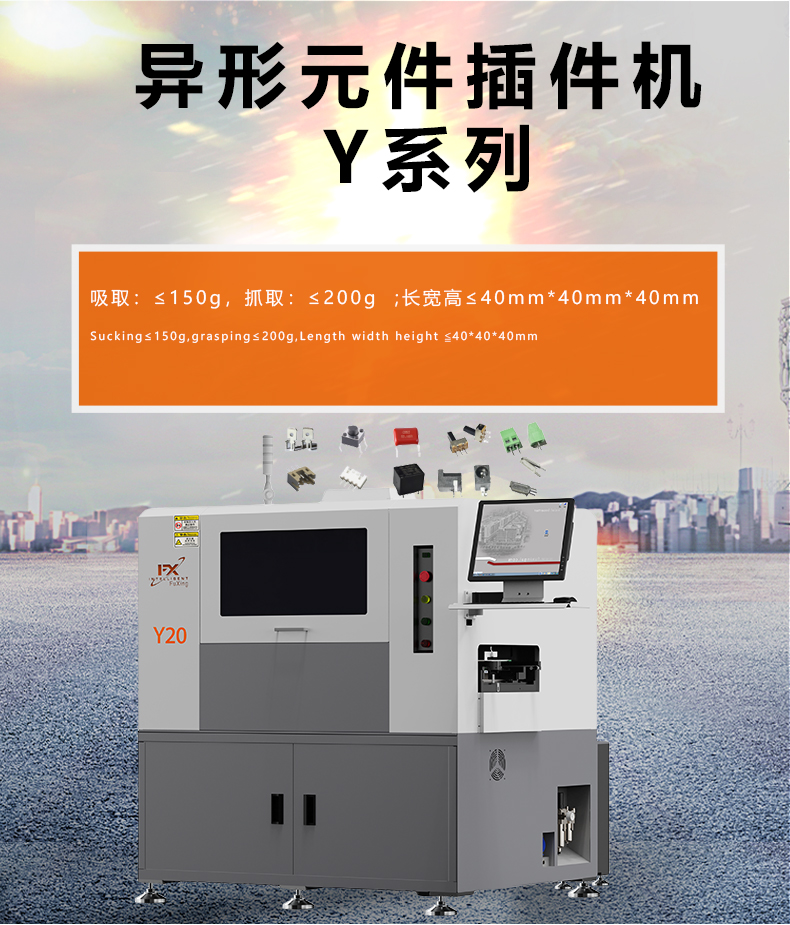

元件種類&規格 |
吸?。骸?50g,抓取:≤200g? ;長寬高≤40mm*40mm*40mm ?Sucking≤150g,grasping≤200g |
|

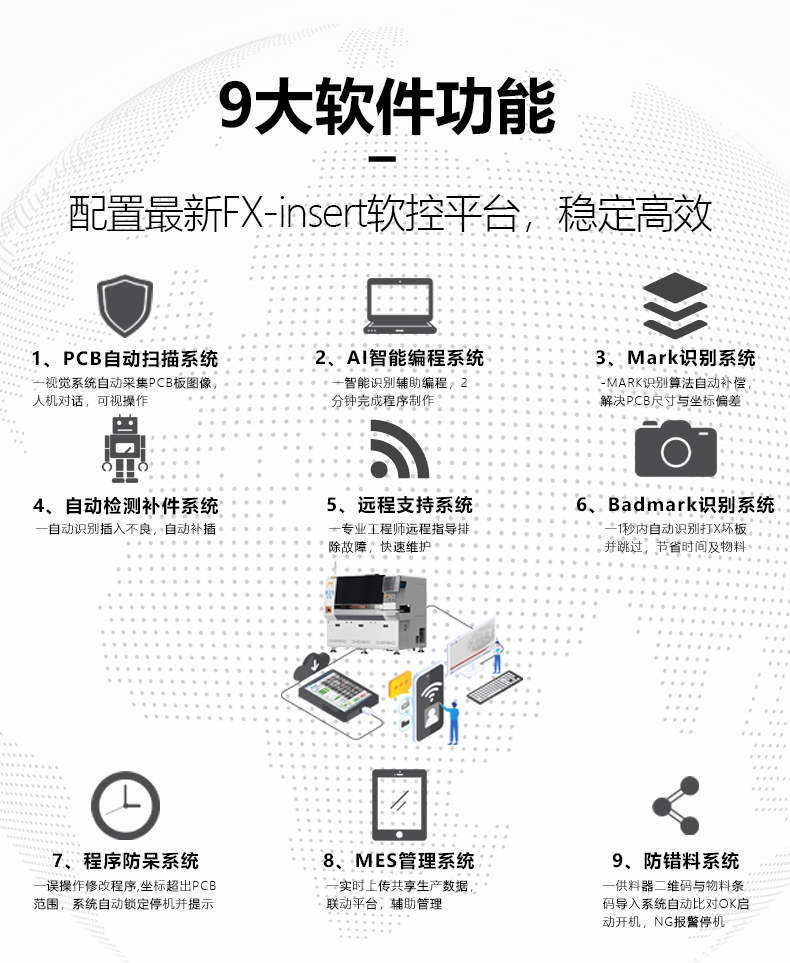

Component type&size | ?Sucking≤150g,grasping≤200g,Length width height ≦40*40*40mm | |
元件剪腳&彎腳 | 剪腳長度1.2~2.2mm(可調);彎角角度5~45°(可調) | |
Component lead trimming &bending | trimming length1.2~2.2mm(adjustable);bending angel 5~45°(adjustable) | |
使用電源&氣源?Power&Air | 220V,AC(單相)50/60HZ ,1.5KW,single-phase;0.6MPA/0.3立方米/分鐘,0.6mpa/0.3m3/min | |
設備尺寸&重量 | 外形尺寸L1530mm×W1100mm ×L1610mm(可定制);設備總重約約1100KG | |
Equipment size&weight | overall dimension L1530mm×W1100mm ×L1610mm(customizable),total weight 1100KG,???????????????????????????????????????? approximately 1100KG | |
控制系統 | Windows操作系統中英文界面、視窗平臺、液晶顯示,USB接口輸入(EXCEL文檔格式) | |
Control System | Windows operating system, Chinese&English interface, platform, LCD display,USB input???????????????????????????????????????????????? (EXCEL document-format) | |
驅動系統 | AC伺服,AC馬達,底座驅動/CTA送料:電磁閥+精密氣缸 | |
Driving System | AC servo, AC motors,base driving mode/CTA driving mode: solenoid valve+precision cylinder |
